18pin 2.0mm Idc Type Ejector Header Connector For Pcb Straight Pin Header

18pin 2.0mm idc-type ejector header connector security industry connector for pcb straight pin header

ejector header definition

ejector header is a connector, the two ends of the body plastic with two ear buckle, similar to the two horns of the cow and named, English name: ejector header connector.
Usually used in conjunction with the female header to form a board-to-board connection; or with the electronic wire harness terminal to form a board-to-wire connection.
Since the specifications required for different products are not the same, there are various types and specifications of ejector header

This connector is widely used in electronics, electrical appliances, instrumentation in the PCB circuit board, its role is to be blocked in the circuit or isolated between the circuit, to play the function of a bridge, the task of current or signal transmission.

Range of Applications

ejector header connectors are widely used in car monitoring, instrumentation, Internet of Things, new energy vehicles, LED display field, POS and scanner, lighting industry, security industry, electronic toys, home appliances, etc., providing the most reliable connection board-to-board and wire-to-board.

specifications

High temperature insulating plastic (UL94V-0) material: PBT (only for wave soldering process).
High temperature insulation plastic (UL94V-0) materials: PA6T, PA9T, LCP (can meet the wave soldering, reflow soldering two processes).
Insulation plastic color can be divided into: black, white, blue, this color, etc.
Square pin material: brass (H65)
(Hardware contact terminal surface treatment: nickel plating first after gold or silver plating, bright tin plating, tin-free plating, semi-gold tin plating, etc.).

2.0mm Idc Type Ejector Header

18pin Ejector Header

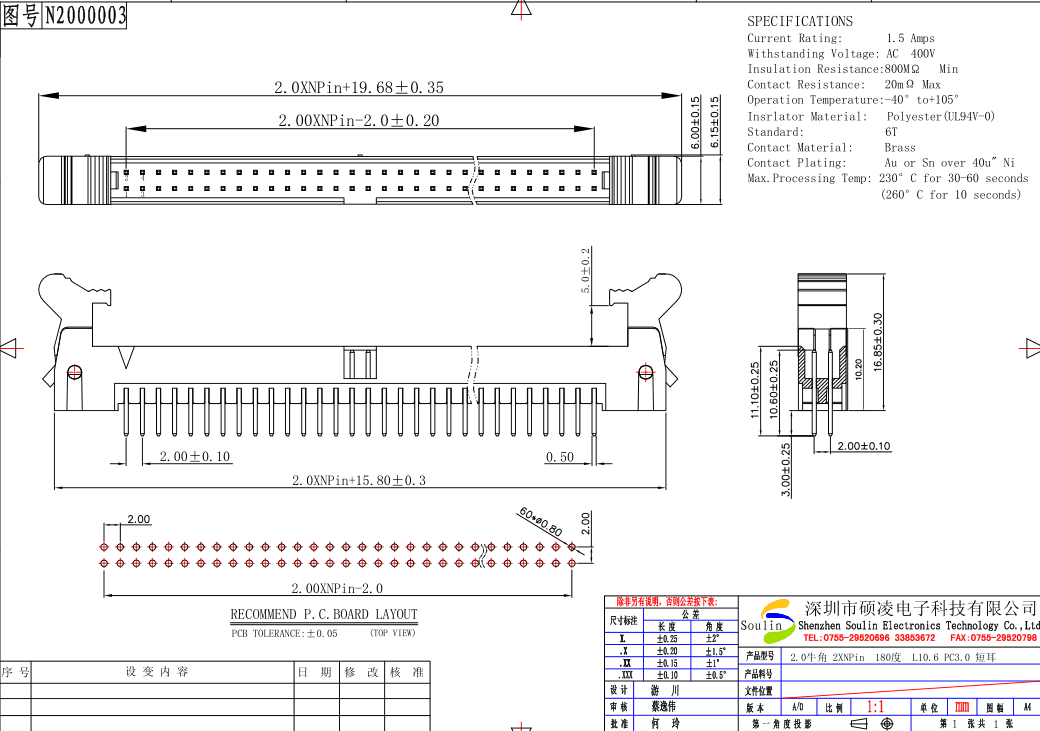

18pin 2.0mm Idc Type Ejector Header Connector For Pcb Straight Pin Header Images
